Lawrence Township Fire Department, OH

Lawrence Township, OH
Specifications

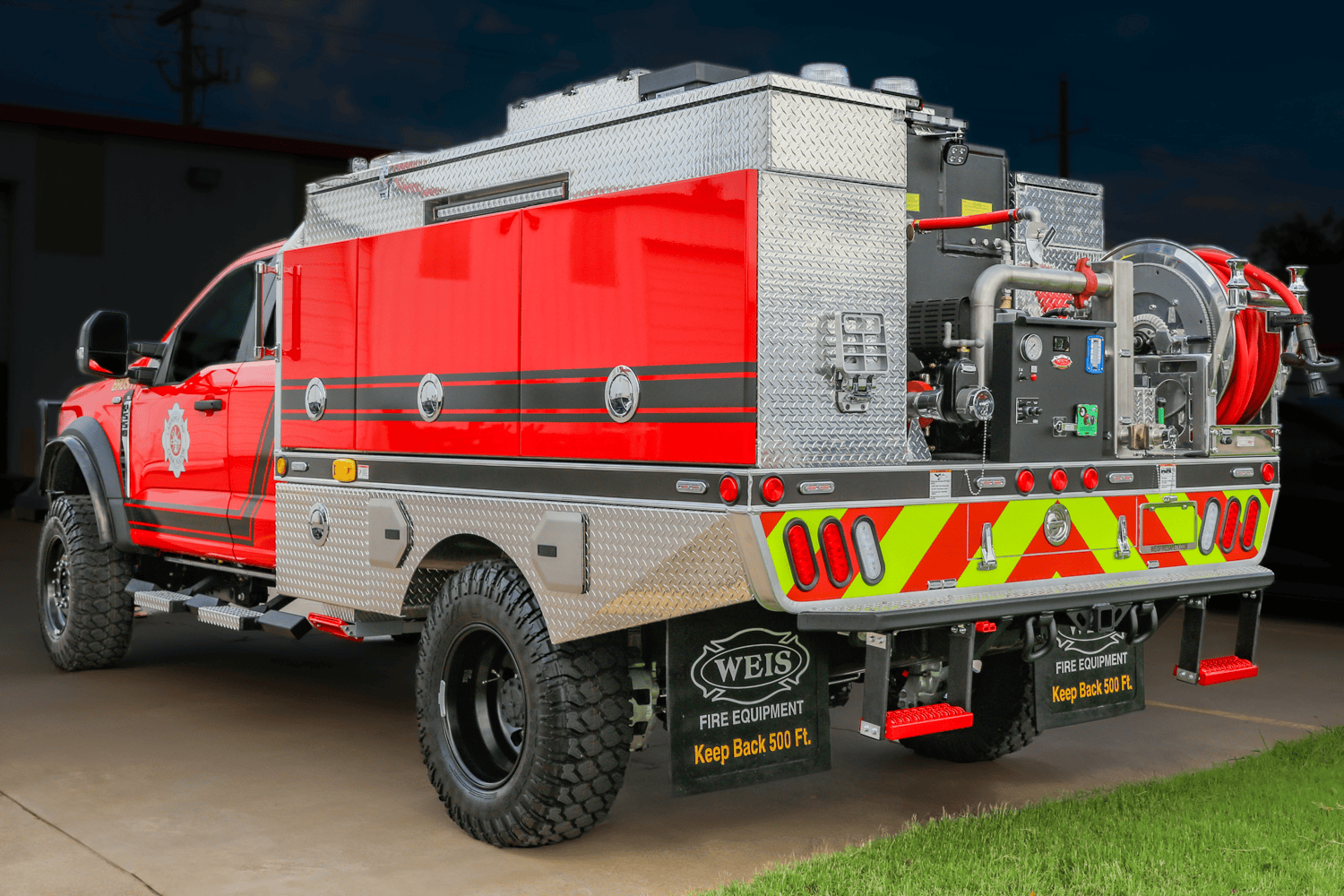

Type: Quick Attack 400RM

Tank: 400 gallons

Pump: Hale HPX200-H20 powered by a Honda 20 HP 4-cycle V-Twin gasoline engine

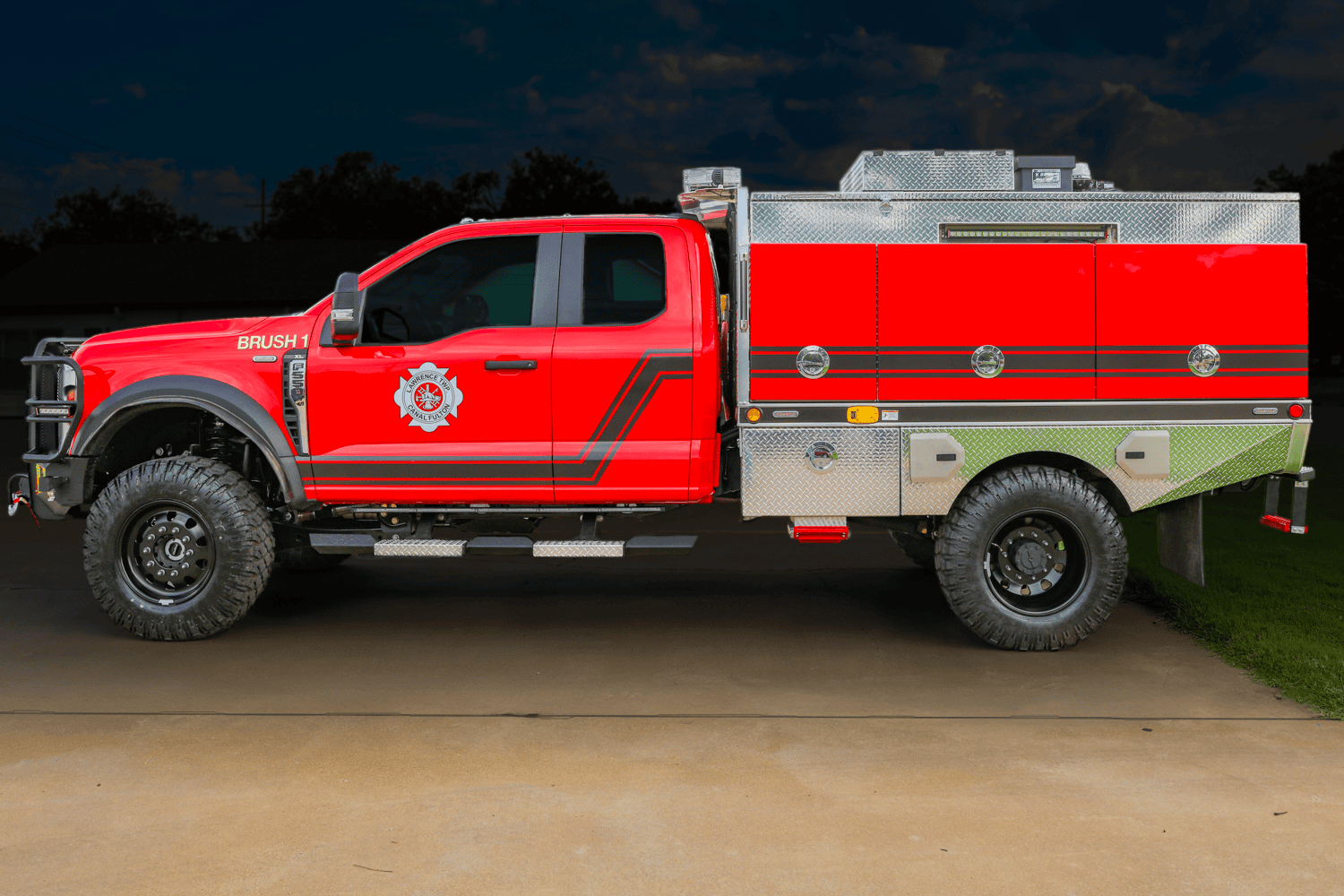

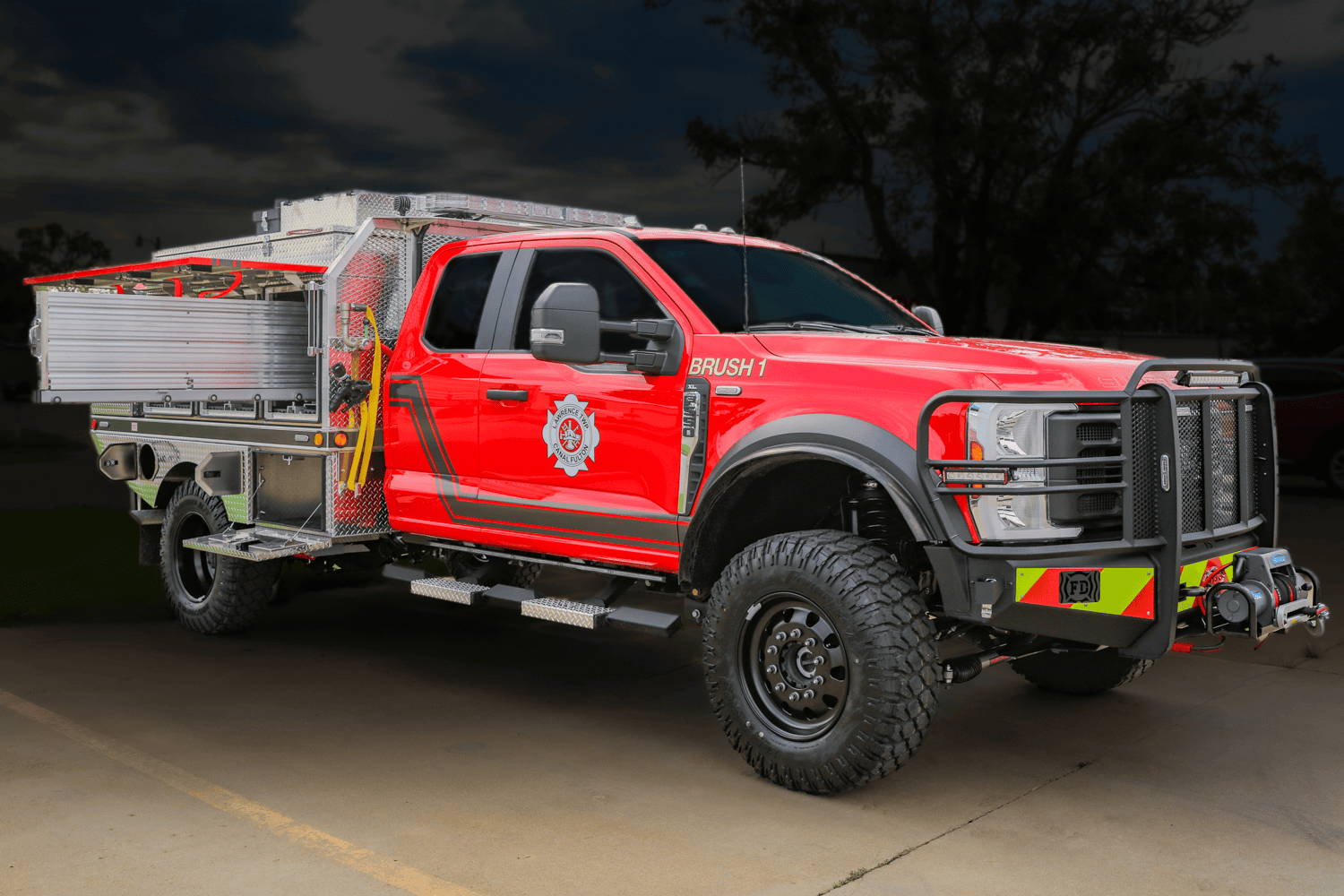

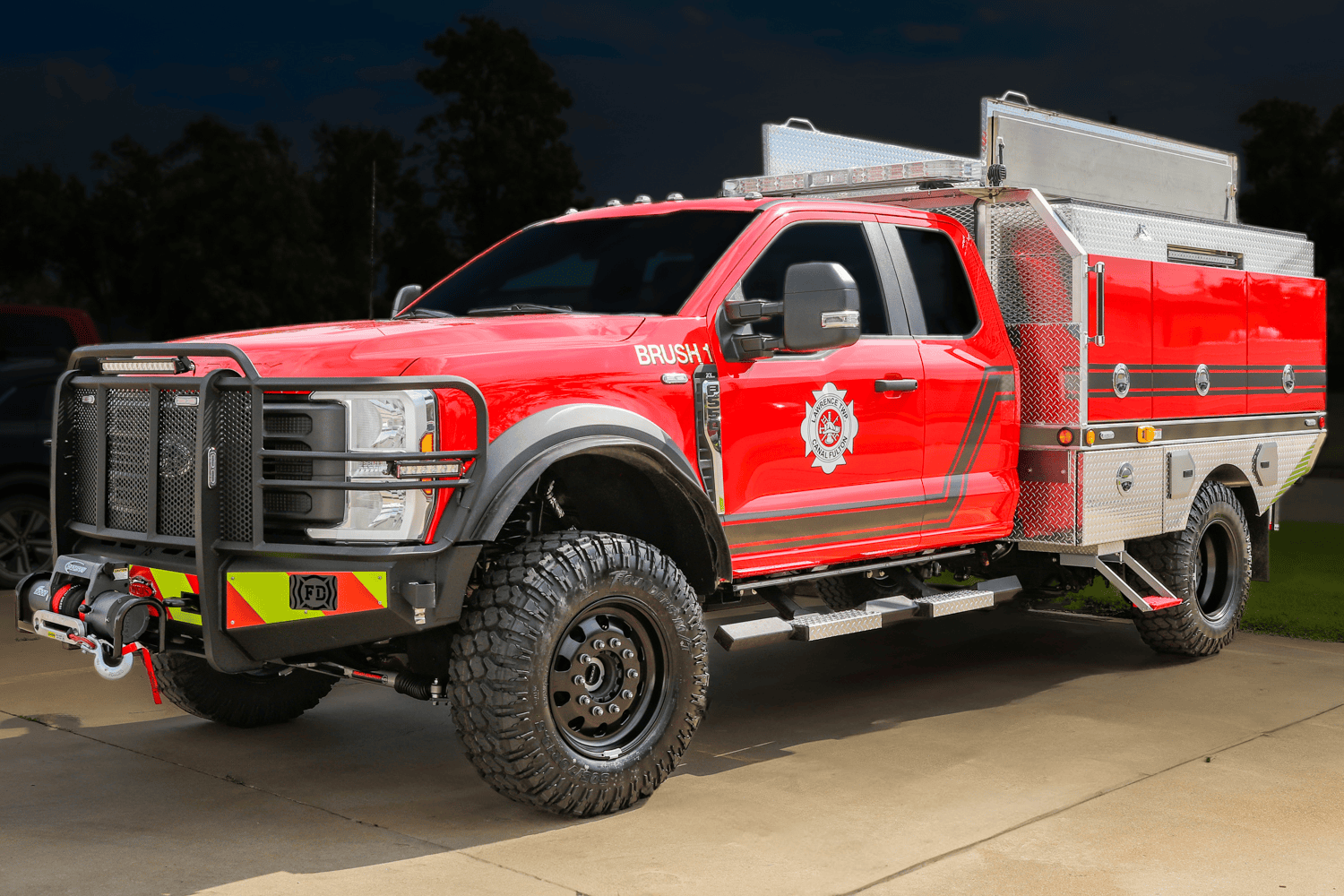

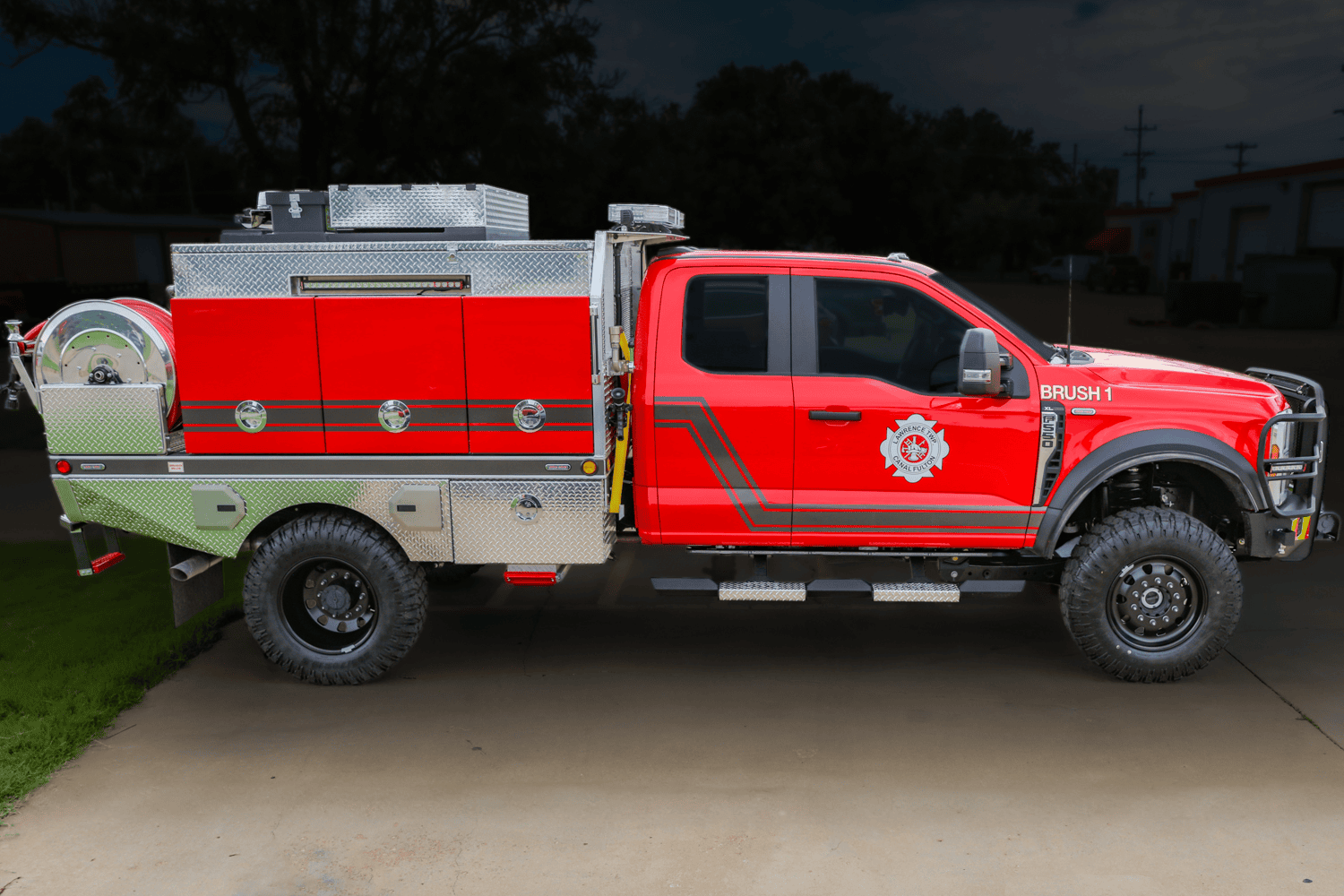

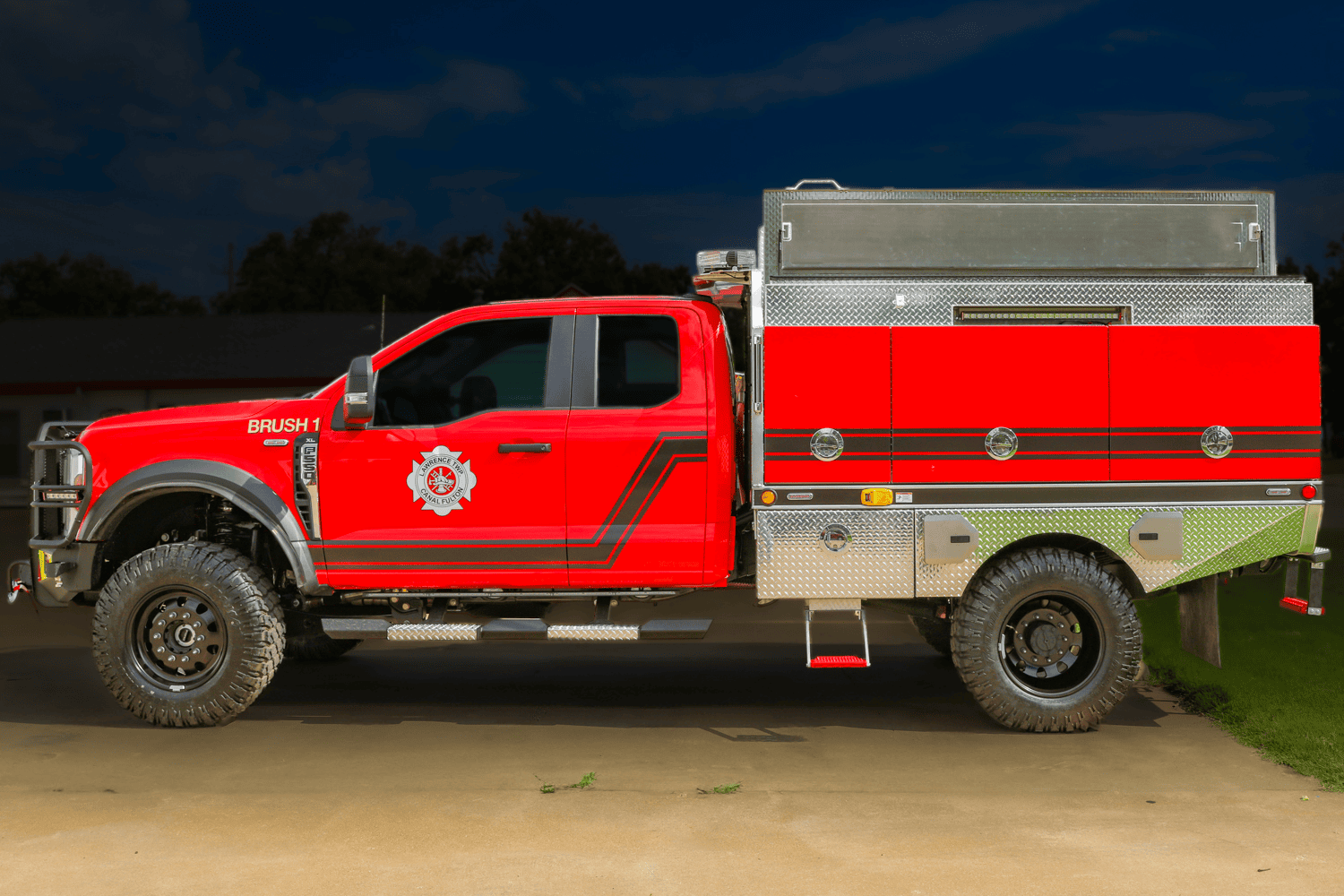

Truck Body: 2024 Ford F-550 Super Duty 4×4 Extended Cab

Additional Features:

Heavy-duty stainless steel plumbing

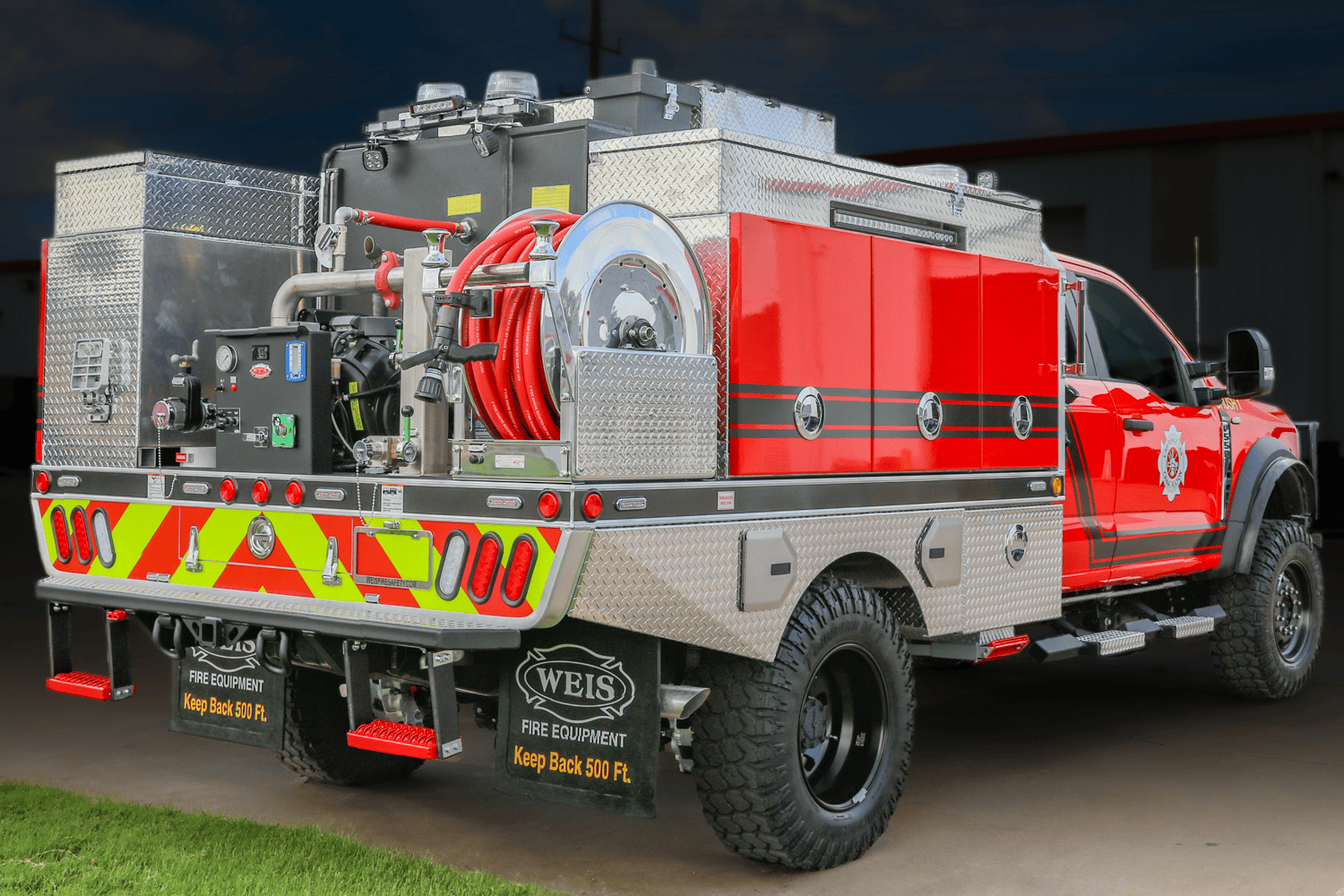

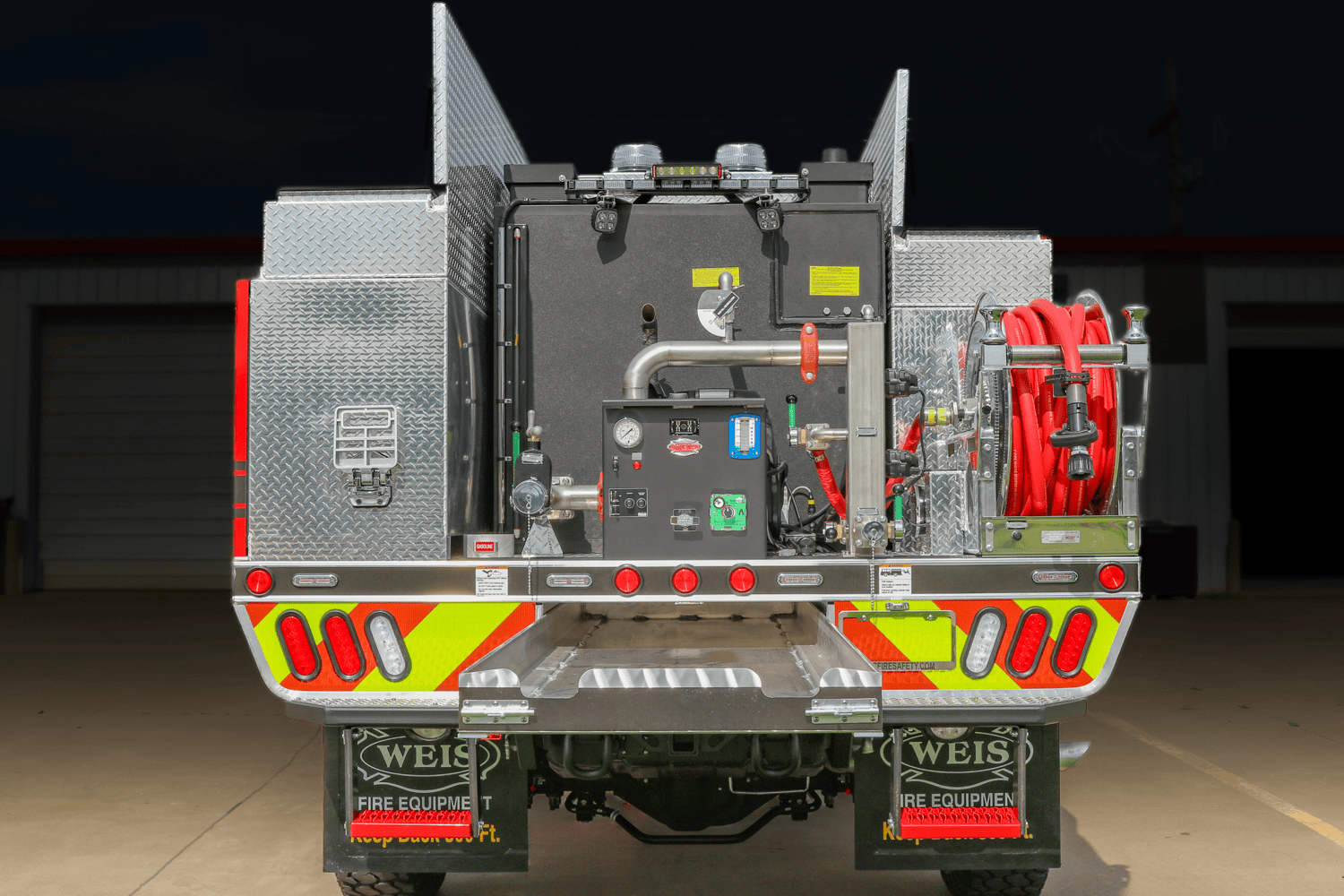

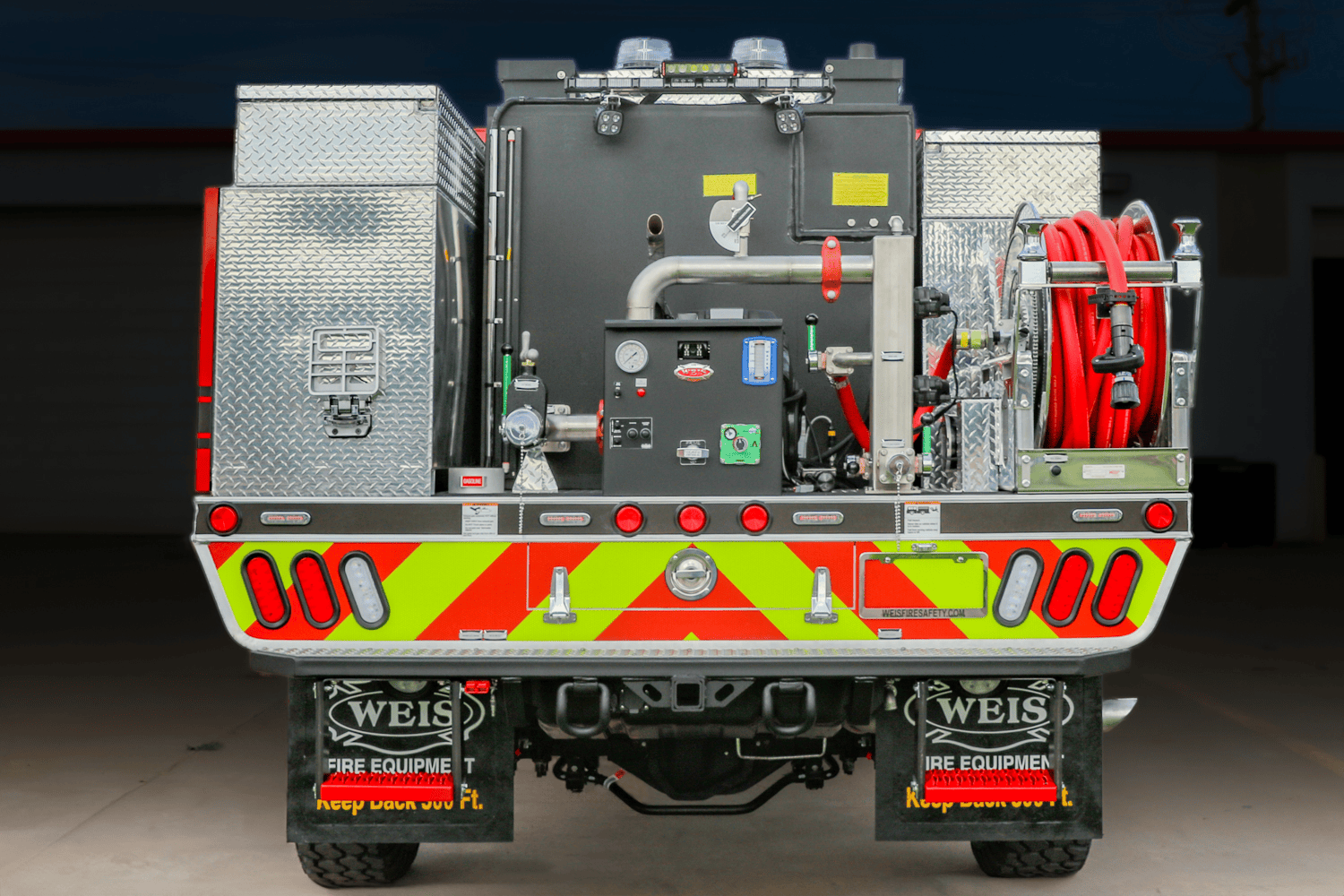

Rear-mount and in-cab pump controls
Trident Foamate ATP 1.0 Class A foam system
Hannay heavy-duty electric rewind booster reel
1″ whip line discharge at front passenger corner with 90º swivel and 4′ flat lay forestry hose
Two independently controlled ground sweep nozzles
Adjustable-gallonage nozzles with pistol grips and nozzle clips provided for booster hose and whip line

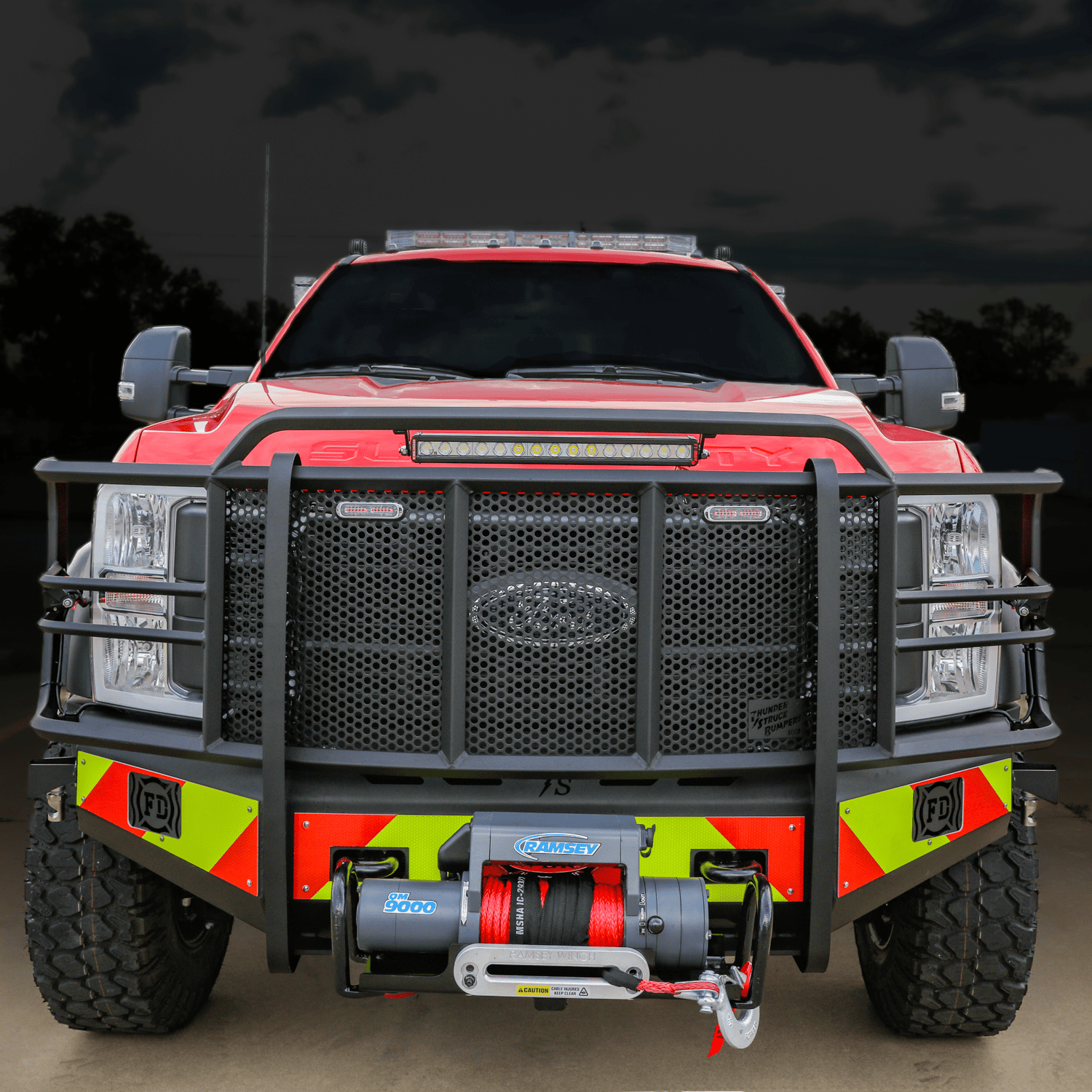

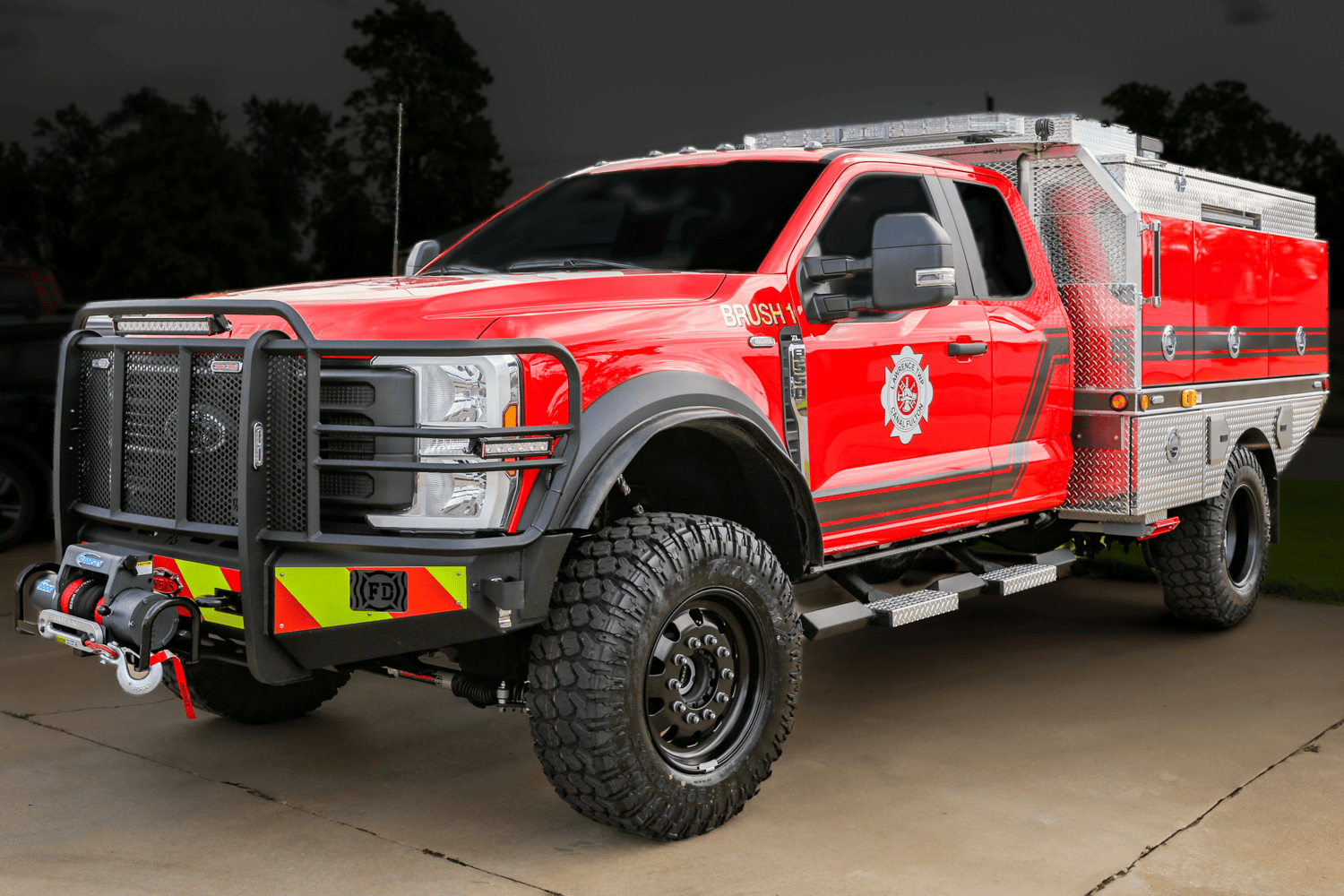

Custom heavy-duty front bumper with siren/speaker mounts, LED scene lights, integral 2″ receiver tube, electrical quick connect, and two heavy-duty tow eyes
Super single rear wheel conversion package with 36″ Founders M/T 305/70R19.5 tires, 2.5″ level kit, 3″ rear solid steel lift block, and custom powder-coated aluminum wheels
Custom step bars
Custom heavy-duty skid plates

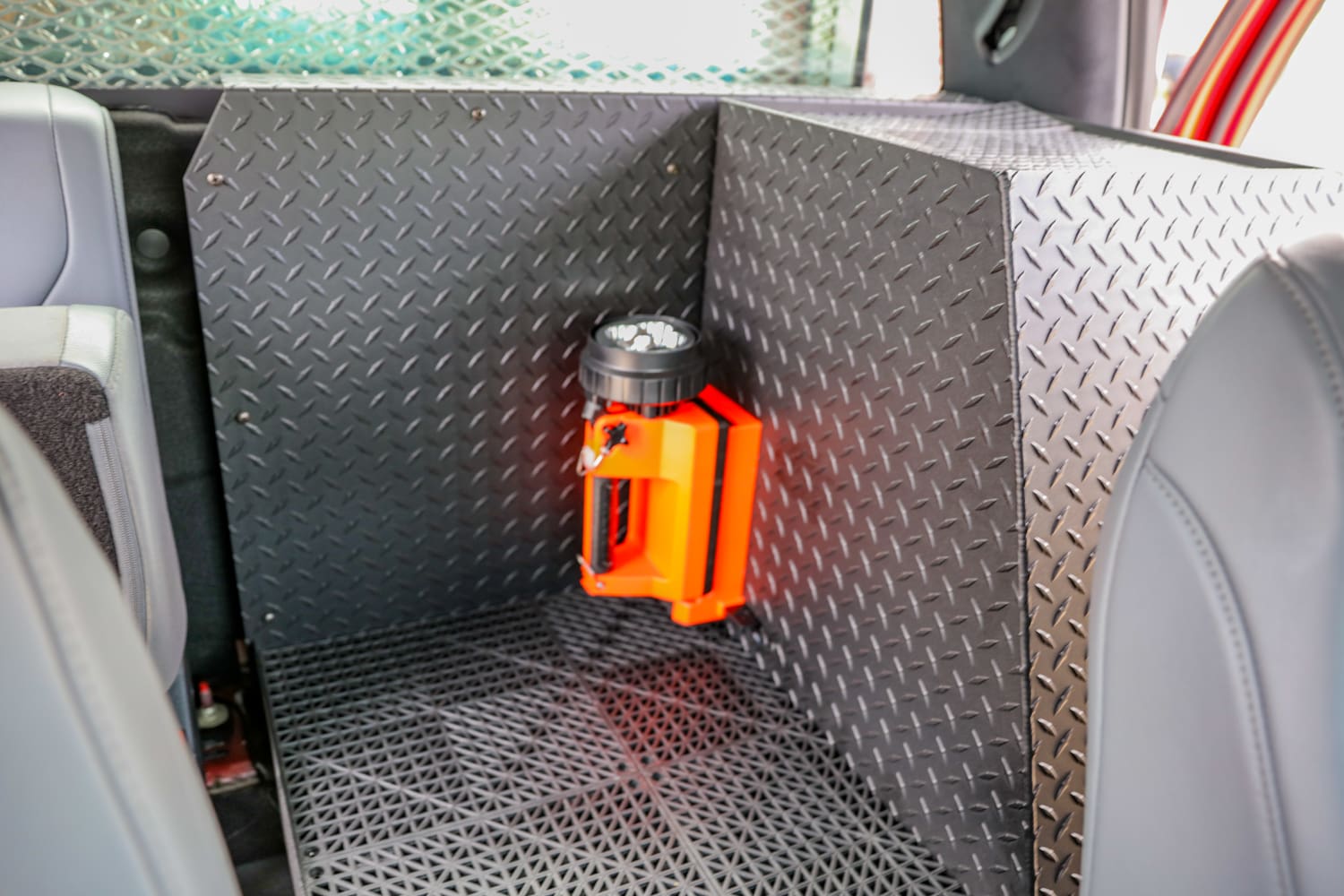

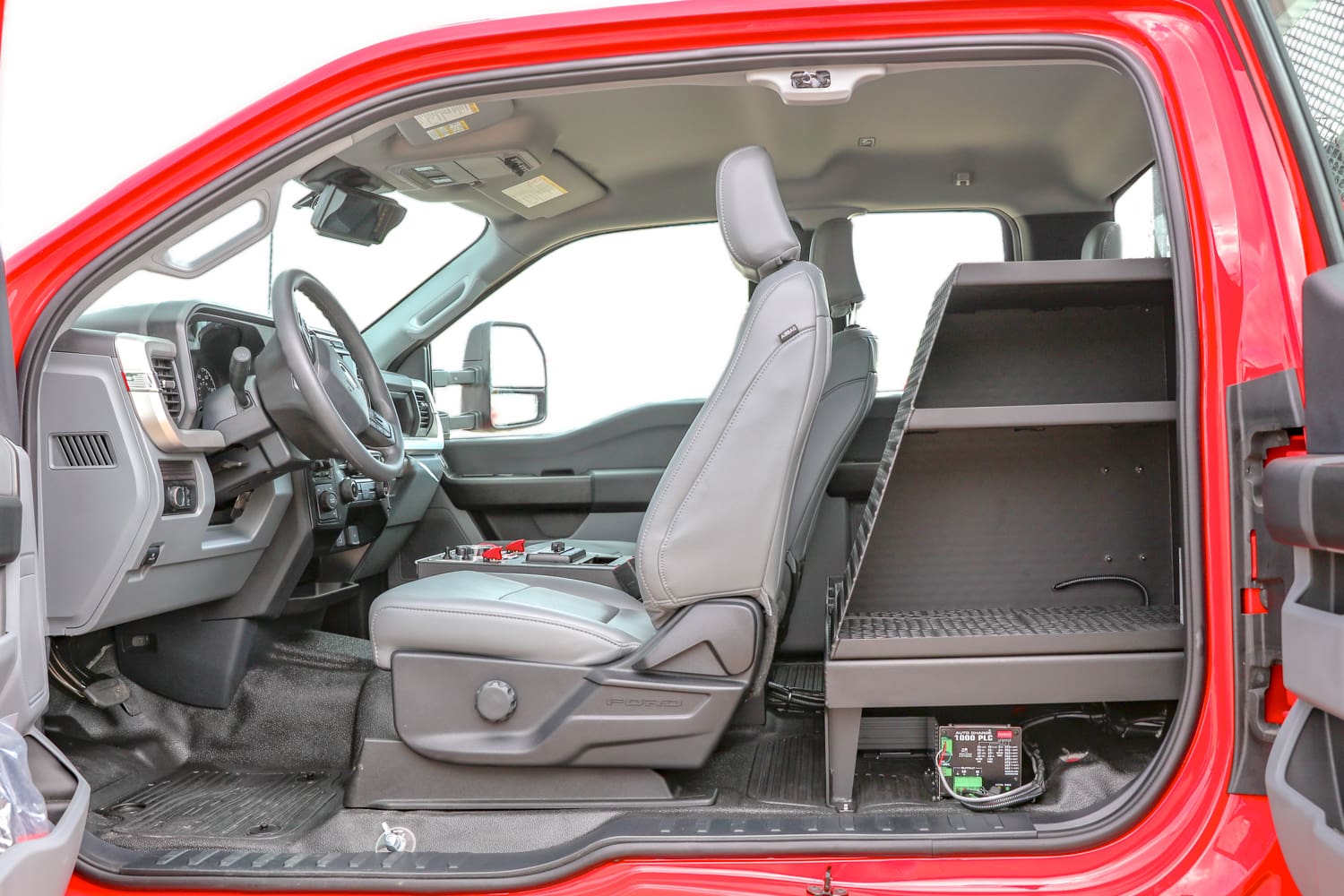

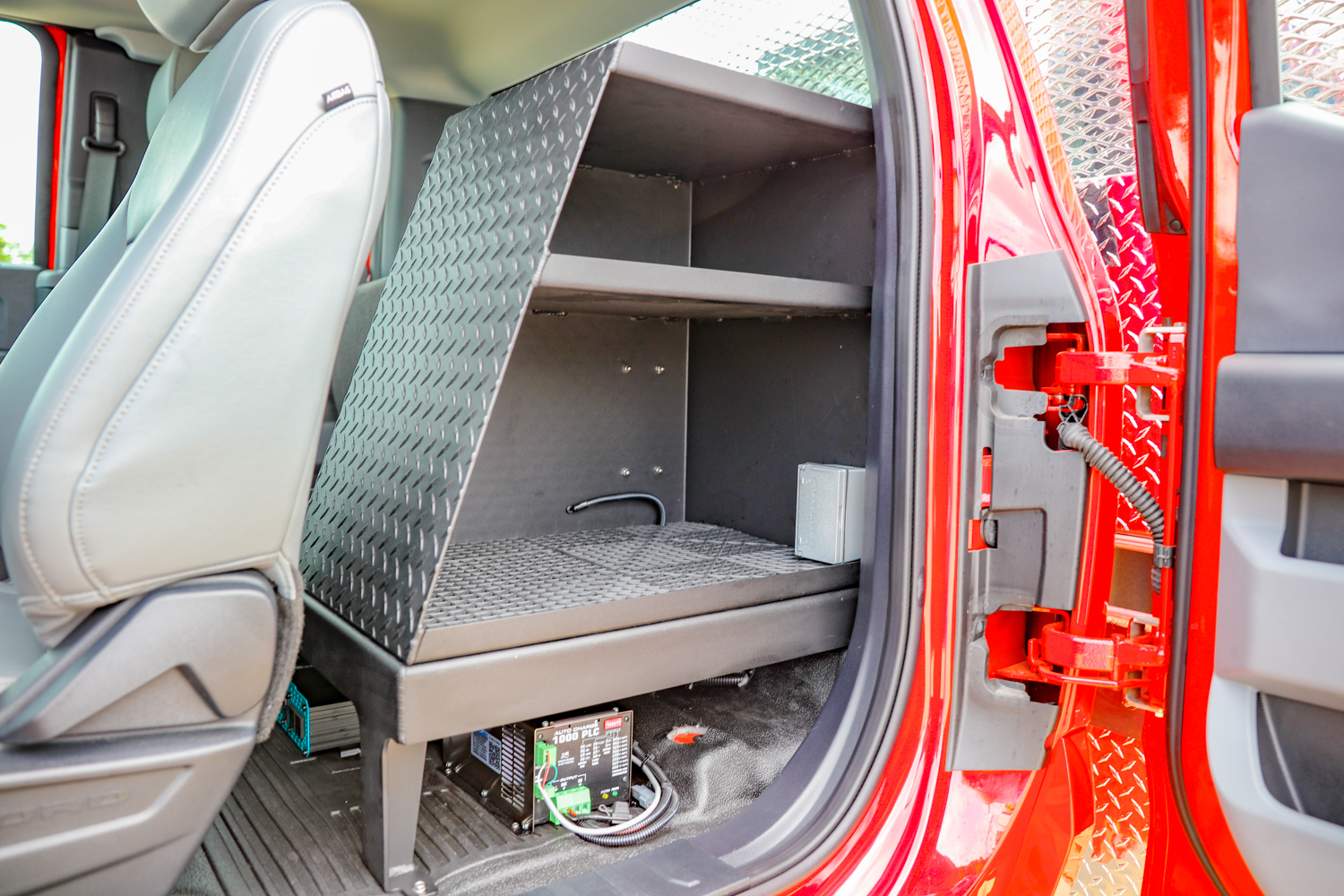

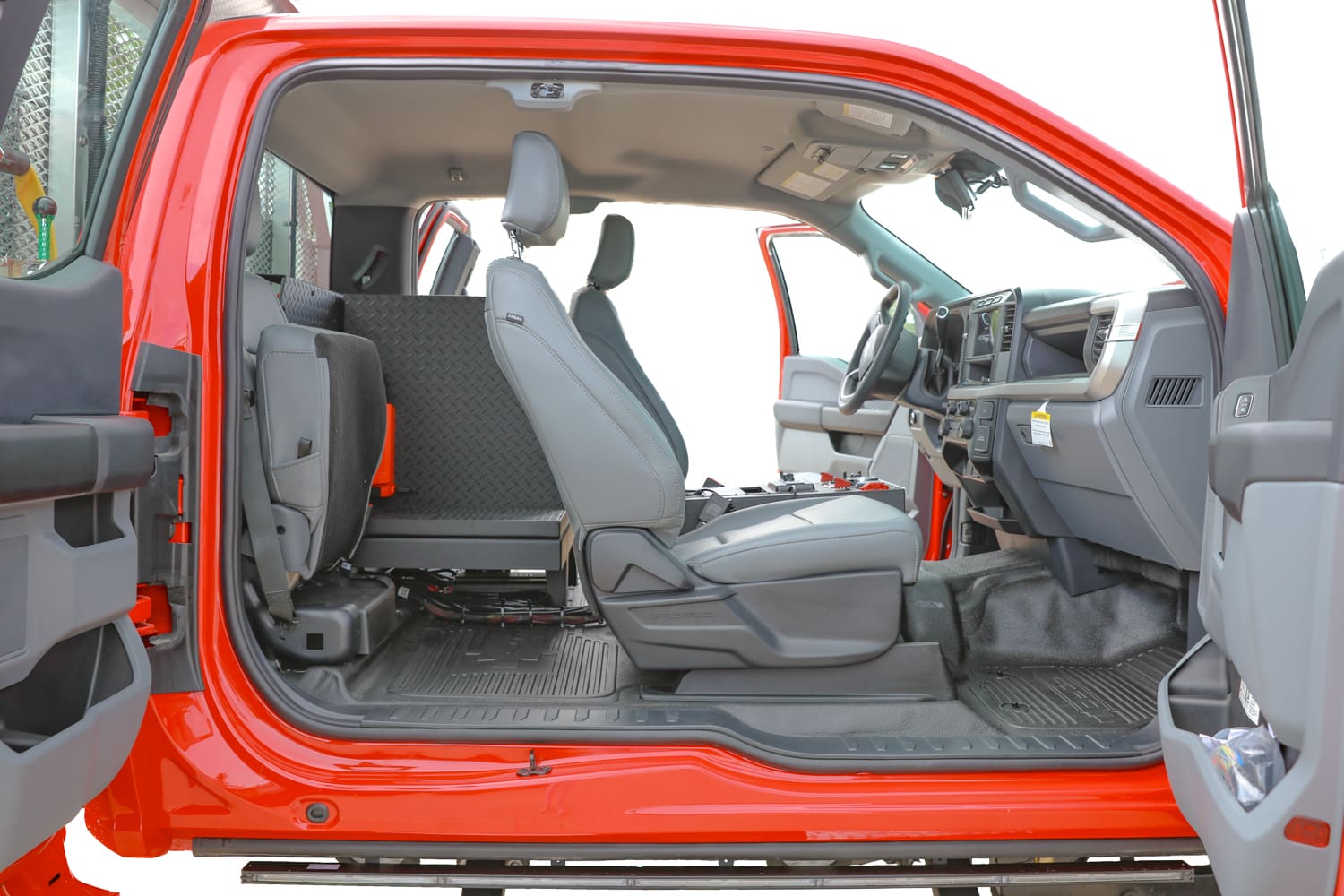

Partial rear bench seat conversion to add custom removable shelf with extra storage space and electrical outlet

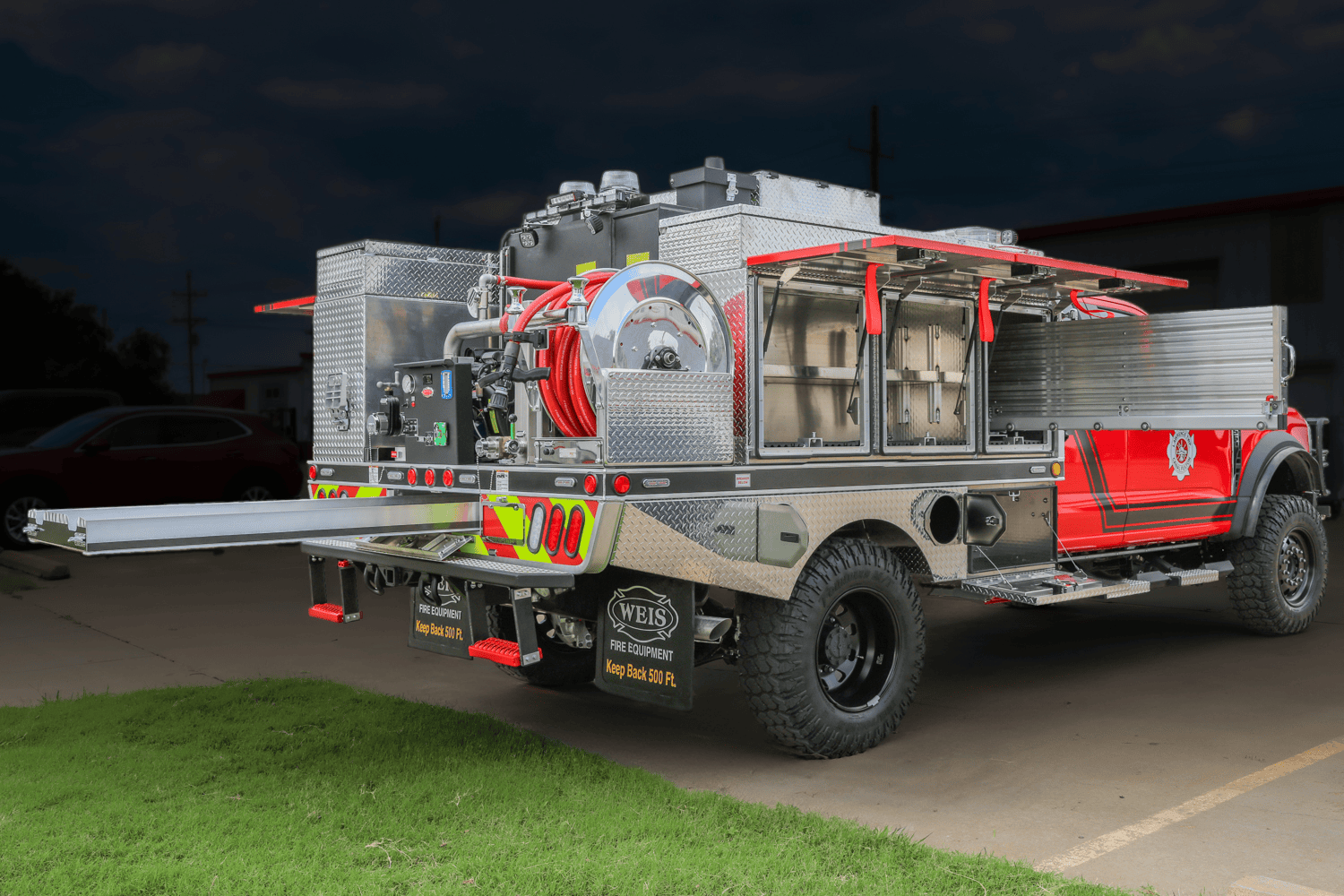

Transverse storage compartment with slide-out vertical dual-sided PAC tool board accessible from both sides of the fire body

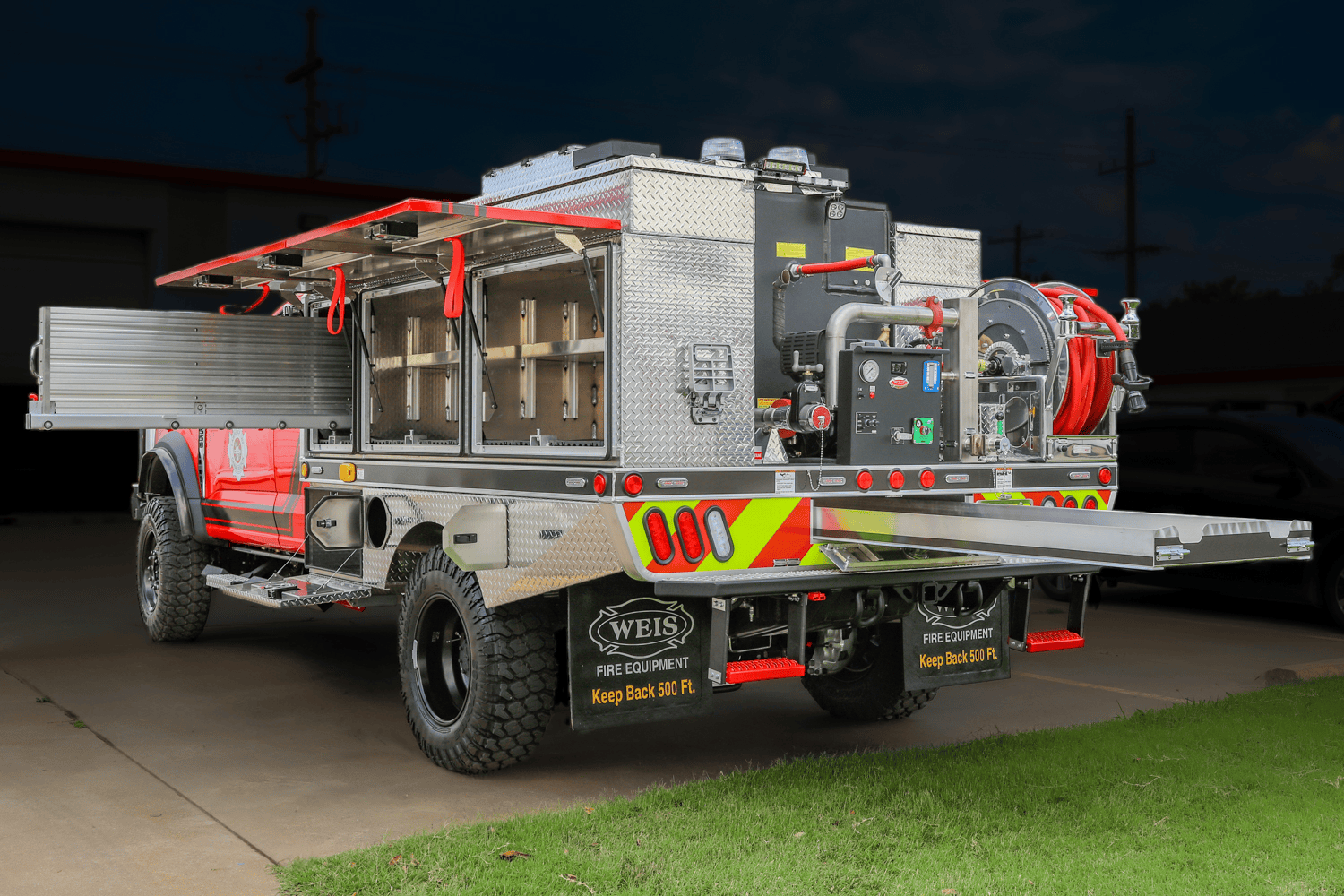

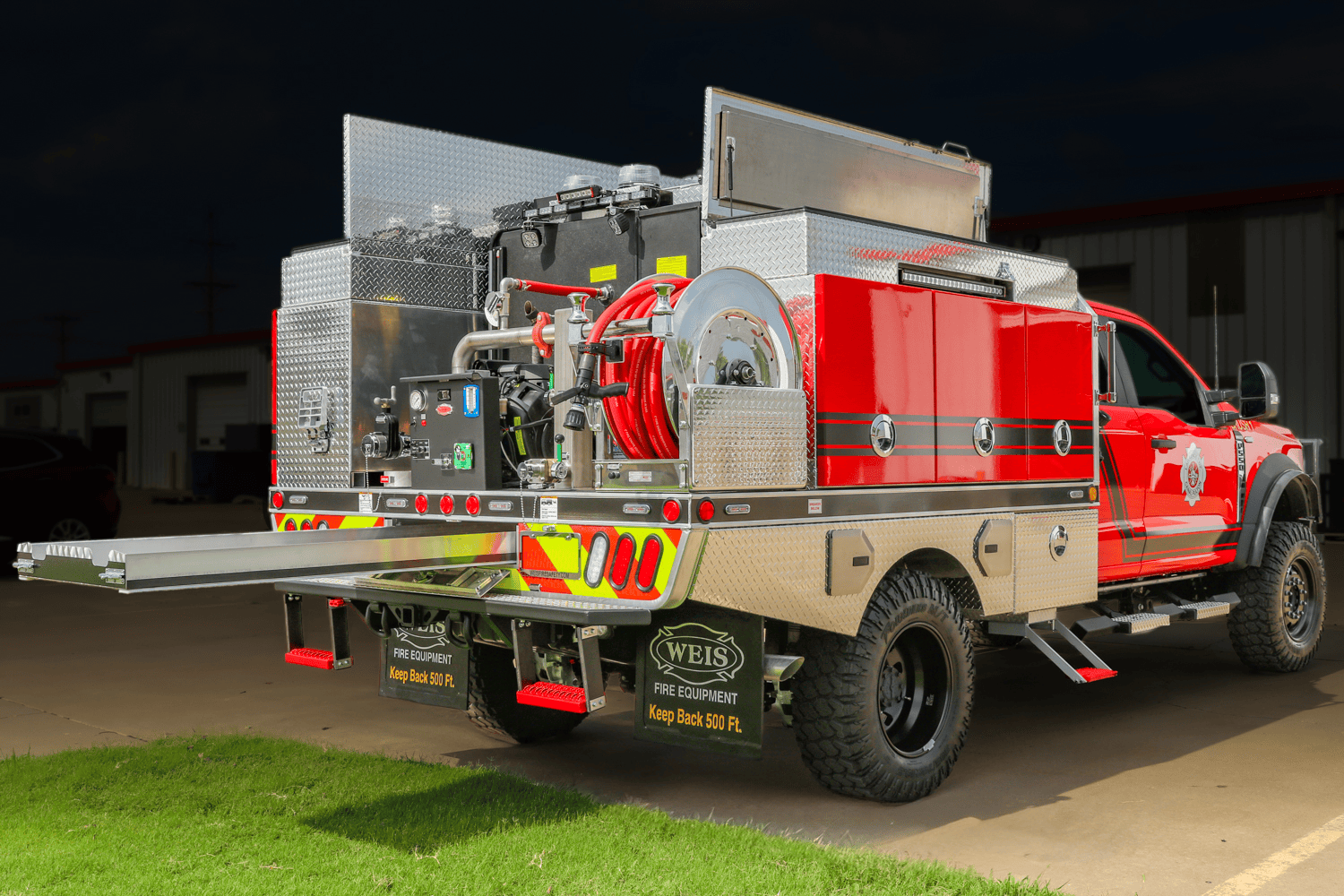

Rear pull-out tray

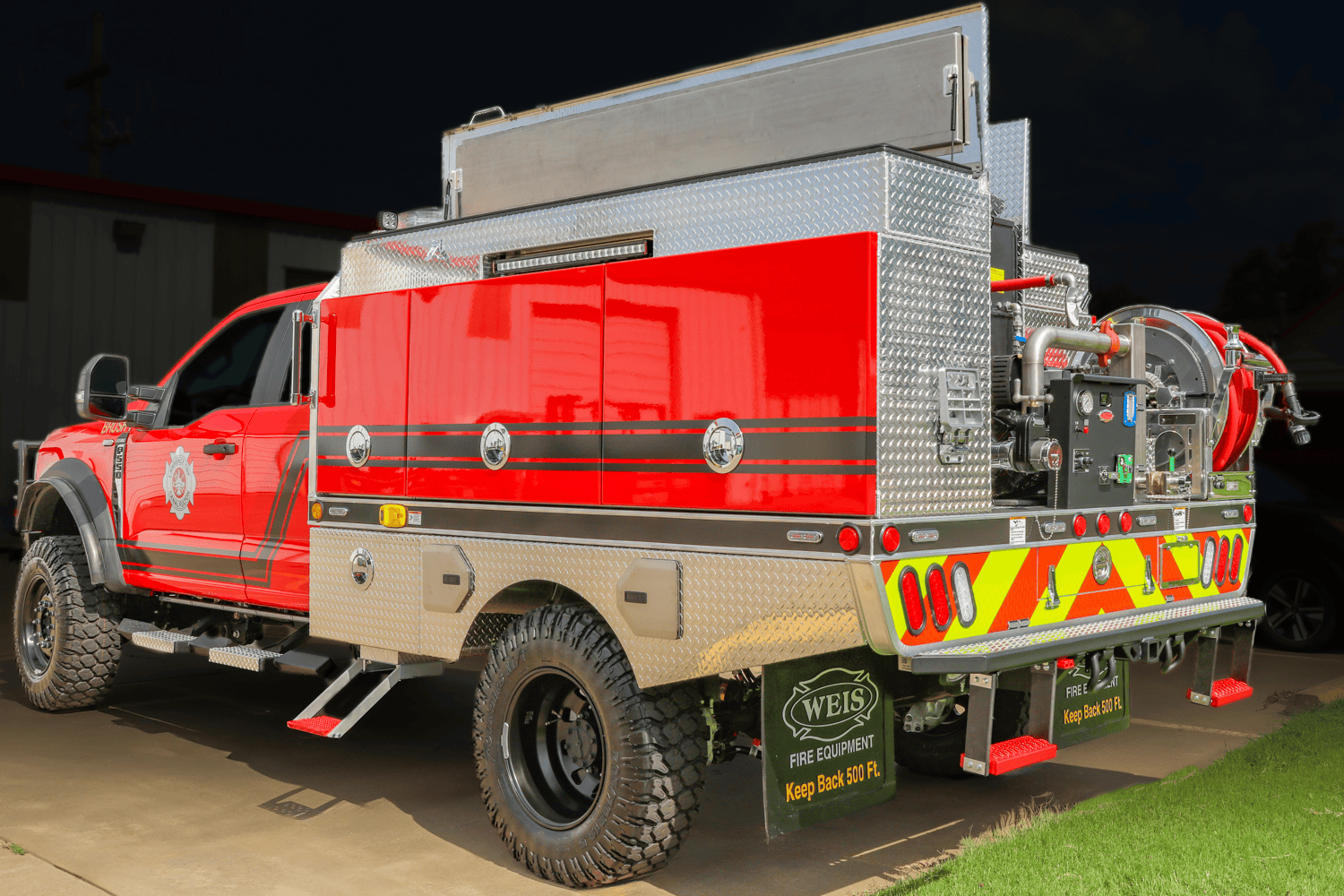

Top-mounted coffin boxes accessible from pull-down steps below underbody storage compartments on each side

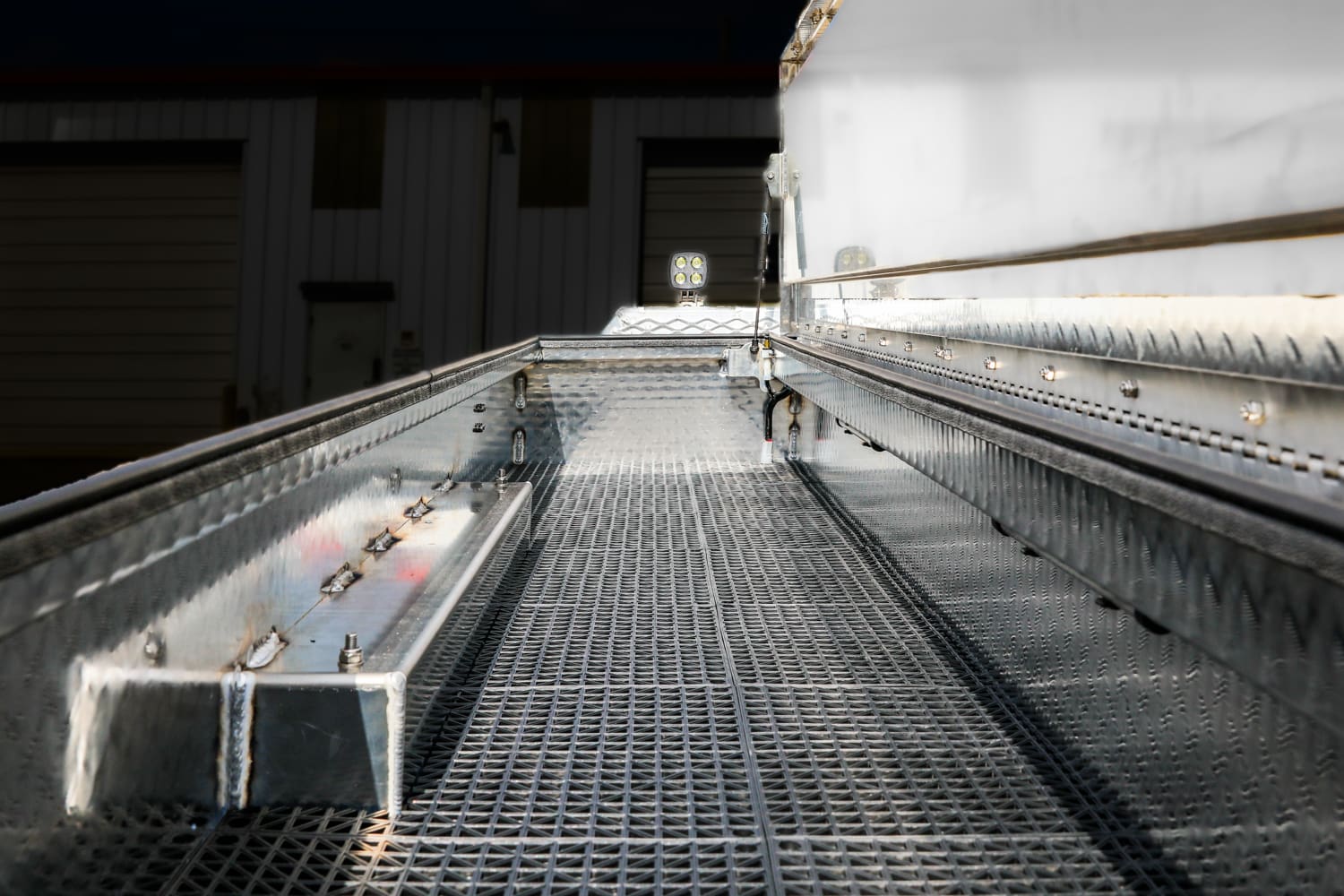

Open storage box on top of tank with cargo net

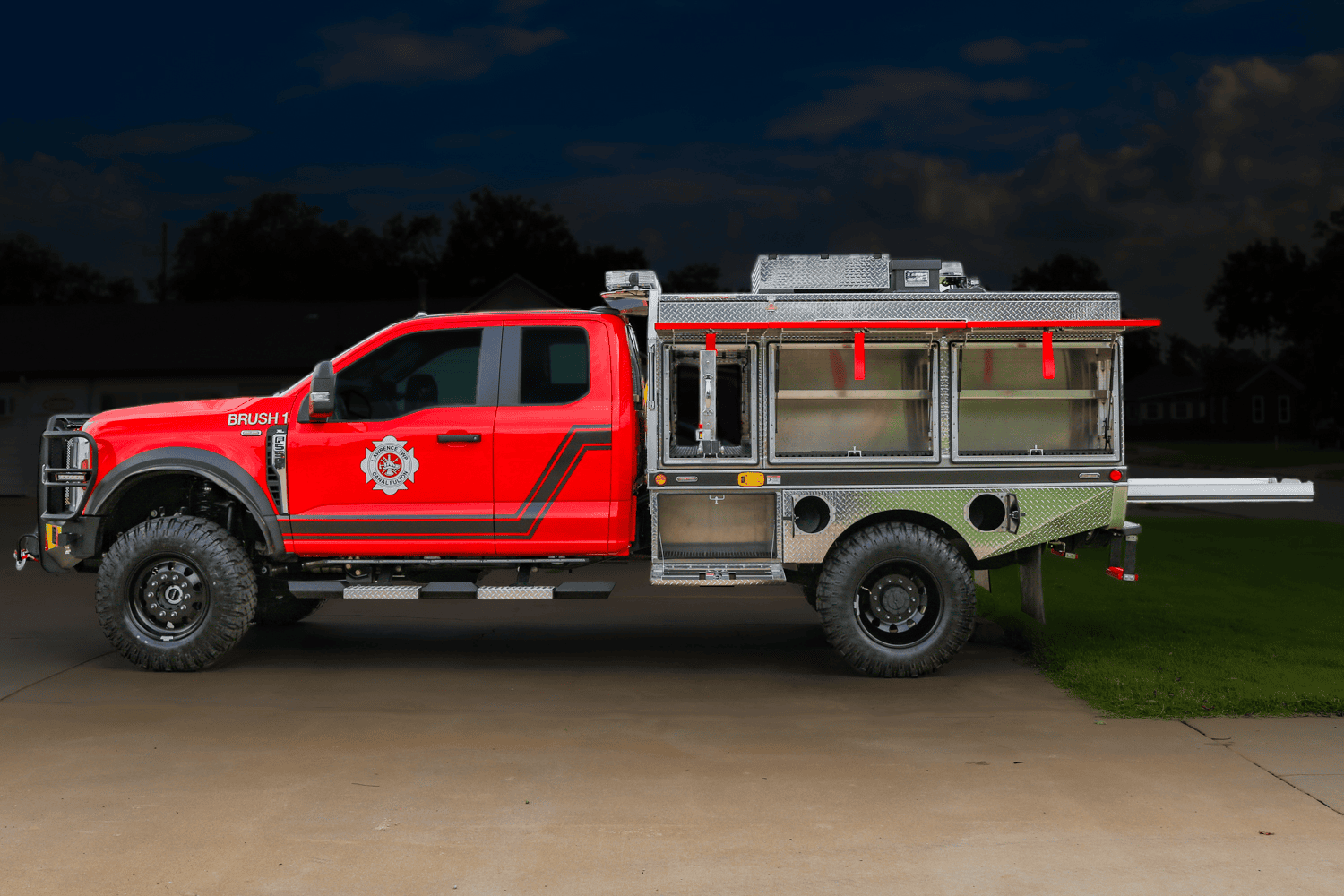

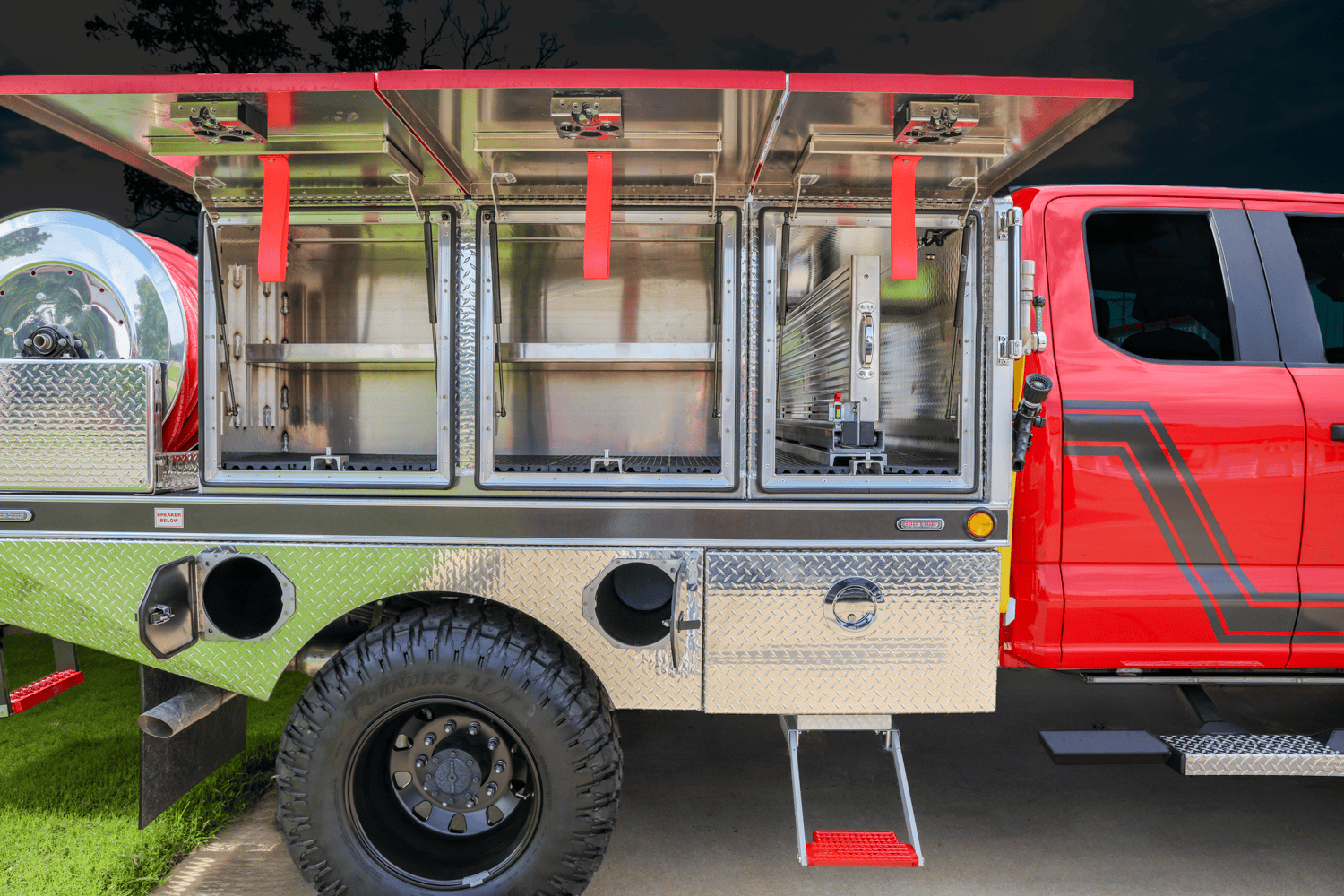

Large upper-body storage compartments with adjustable shelves
Custom fender panels with two underbody SCBA bottle storage compartments on each side
Custom rear bumper with integral receiver hitch, two integral tow shackles, dual 7-pin and 4-pin electric connector, and flexible steps
Whelen dimmable emergency lighting, Traffic Advisor, 200-watt siren, and two 100-watt speakers

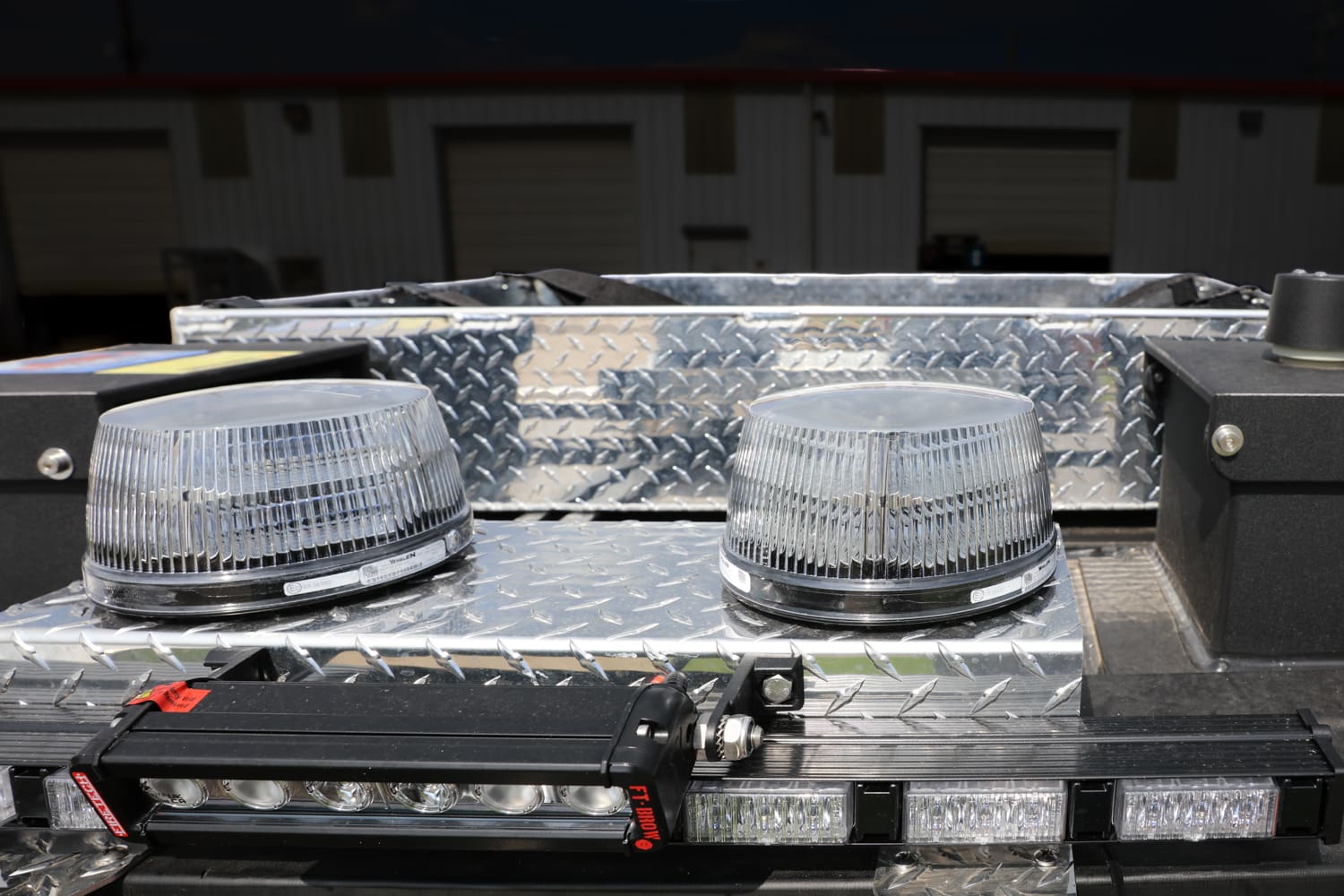

HiViz MiniBrow and combo scene/flood/spotlights
LED work lights and ground lights
Extreme-duty backup camera system

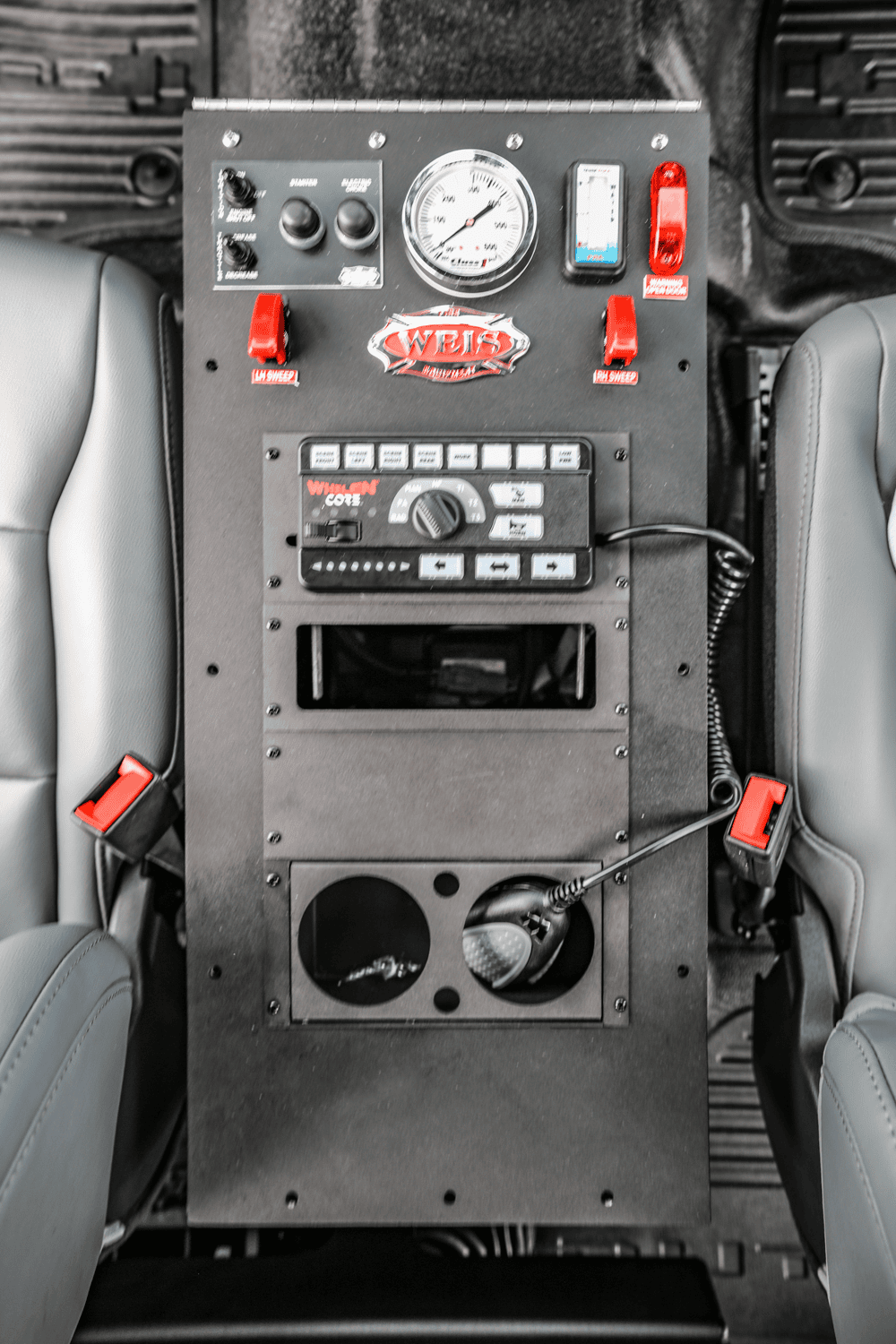

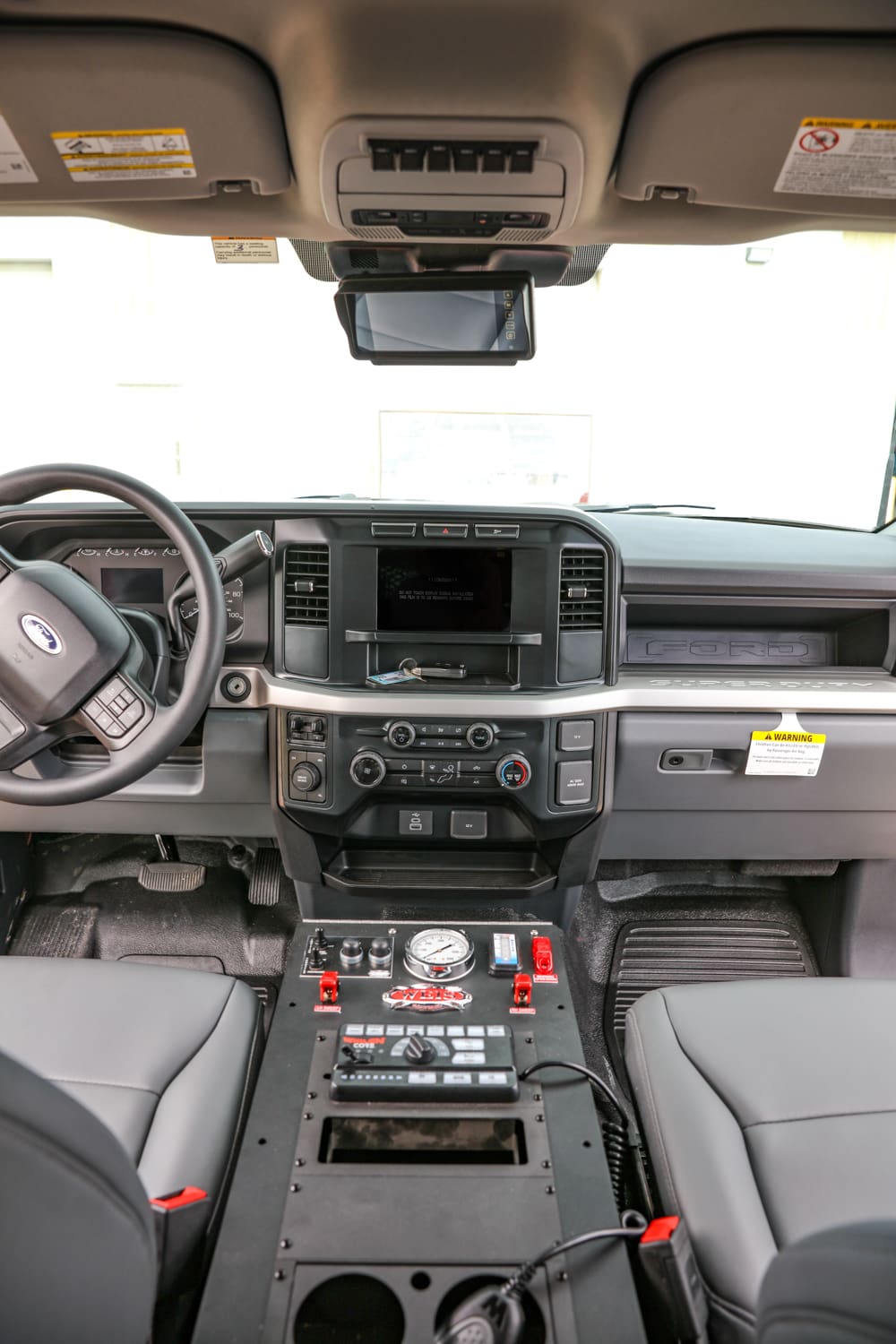

Custom aluminum console for siren/switch controls, Traffic Advisor controller, master discharge gauge, tank level indicator, radio face plate, and two cup holders
Kussmaul Auto Charge 1000 with Super Auto Eject plug
Custom lettering and striping
Also provided:
- Ramsey 9,000 lb. quick-mount portable winch with 100′ of 3/8″ synthetic rope
- Streamlight E-Spot LiteBox with charger
- Fire flapper with 5′ fiberglass handle
- Fire rake with 5′ fiberglass handle
- Four 100′ lengths of 1.5″ Key Hose Big-10 double jacket attack hose
- Two 100′ lengths of 1″ Key Hose Big-10 double jacket attack hose
- Two 1.5’’ F NH x 1’’ M NH adapters
- Factor 55 Sawtooth Vehicle Recovery Kit
